Sliding Doors

Sliding Doors

With three sliding door systems available from the Alspec range, there is a sliding door system to suit any application.

The Altitude door is a versatile sliding door suited for most residential applications. The Proglide door is suited to both residential and commercial applications where larger doors are desired, as the span and weight capacity is greater than the Altitude door. The Hawkesbury Sliding Door is a top hung sliding door that has a greater weight and panel size capacity than both the Altitude and Proglide doors.

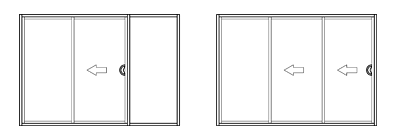

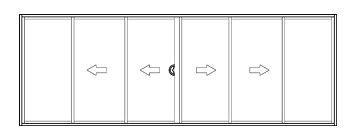

Altitude® Sliding Door

The new Altitude® Sliding Door has been specifically designed with the latest trends in architecture in mind. The door allows architects and designers the ability to achieve expansive openings without the need to compromise on performance or aesthetics.

Specifying the Alspec® Altitude® Sliding Door ensures the client receives a stylish, high performance product.

Designed by Alspec® to meet the extremes of the Australian environment, the Altitude® Apartment Sliding Door is the premier choice by architects, builders, home owners and fabricators when looking for a great sliding door.

Frame Dimensions
Option 1 76 x 46mm
Option 2 101.6 x 46mm
Option 3 150 x 46mm
Maximum Product Performance
SLS (Pa) 2200
ULS (Pa) 3200
WATER (Pa) 600
Glazing Details
Single Glazed 4 – 12.4mm
Double Glazed 18mm
Acoustic Performance: Rw (c;ctr)
6.38mm Laminate 32 (-2,-2) dB
10.5mm Hush Laminate 36 (-0,-2) dB
Maximum Recommended Sizes
Height 2700mm
Width 1500mm
Weight 160kg
Thermal Performance
Uw range SG 4.2 – 6.0
SHGC range SG 0.30 – 0.69
Uw range DG 3.3 – 3.8
SHGC range DG 0.16 – 0.58

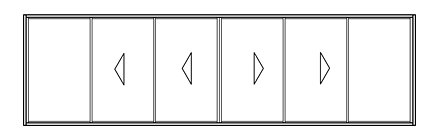

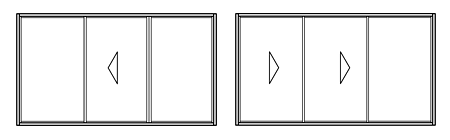

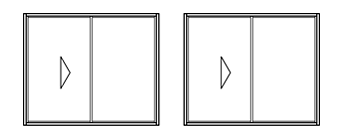

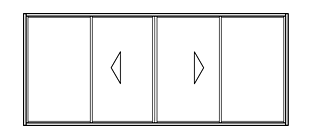

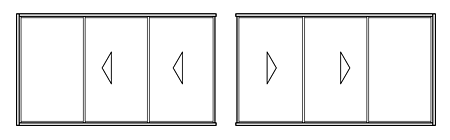

Alspec’s® High Performance Sliding Door

ProGlide® is an update of the Commercial Sliding Door featuring new sill sections for both Double and Triple Track and a number of new sash options that allow for thicker glass, double glazing and an on site glazing option.

The major changes include new sill sections with drop in tracks which can easily be replaced if damaged or worn and their unique design covers the unsightly drainage slots in the sills with the added benefit of increased water performance. All existing hollow sills continue to be available for applications where a sub sill is not used.

Gutter sills in both double and triple track versions are now available for flush sill applications and these incorporate an aluminium, or stainless steel grate to drain surface water.

A comprehensive range of sash options are now available for ProGlide®:

  • Existing SG sashes for 5mm – 10.38mm glass
  • New sashes with 18mm wide pockets to accept glass up to 14mm
  • New DG sashes for 18mm – 25mm IGU’s
  • Glazing adaptor and rail for 28mm IGU’s
  • New deep pocket SG sashes for onsite glazing 5mm – 6.76mm wet glazed on site
  • New onsite DG sashes for 18mm, 24mm and 25mm IGU’s wedge glazed using “eco” range of gaskets

These new sill and sash options add to a comprehensive list of features and benefits of the ProGlide® High Performance Sliding Door. These include a wide range of interlocks combinations to meet height and wind load requirements, standard lock stiles that accept face fix or mortice locks, wide stile options catering for special locks, highlite and screening options.

These ongoing developments will ensure that the ProGlide® High Performance Sliding Door remains at the forefront of sliding door design.

Frame Dimensions
Option 1 101 x 50mm
Option 2 151.5 x 50mm
Maximum Product Performance
SLS (Pa) 3000
ULS (Pa) 6000
WATER (Pa) 700
Cyclonic Performance
Glass Type 12.4mm Gen II
m/sec 38
Glass Type 12.8mm Ultra Forza
m/sec 38
Glazing Details
Single Glazed 5 – 13.52mm
Double Glazed 18 – 28mm
Acoustic Performance: Rw (c;ctr)
6.38mm Laminate 32 (0; -2) dB
10.38mm/12/6.38mm IGU 38 (-2;-4) dB
Maximum Recommended Sizes
Height 3150mm
Width 2250mm
Weight 200kg per panel
Thermal Performance
Uw range SG 4.3 – 6.1
SHGC range SG 0.38 – 0.66
Uw range DG 3.0 – 3.9
SHGC range DG 0.22 – 0.55

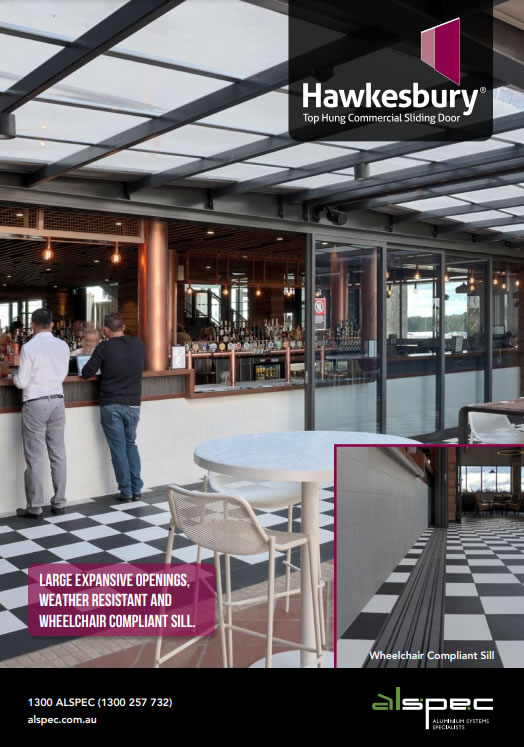

Hawkesbury® Sliding Door

Large Expansive Openings, Weather Resistant and Wheelchair Compliant Sill

The Hawkesbury Top Hung Sliding Door from Alspec offers architects and designers unrivalled design flexibility with the freedom to achieve large expansive openings whilst also offering a weather resistant and wheelchair compliant sill.

Specifying Alspec’s Hawkesbury Top Hung Sliding Door ensures the client receives a solid, durable high-performance product offering a continuous accessible path of seamless transition between internal and external floor finishes that is capable of large panel sizes up to 3000mm in height and 2500mm in width. Multi-stack configurations are available using high quality E3 hardware by Centor.

Designed and manufactured in Australia to meet the extremes of the Australian environment, the Alspec Hawkesbury Top Hung Sliding Door is the first choice amongst architects, builders, home owners and fabricators when performance and quality matter.

Key Features

  • Powered by exclusive hardware from Centor Architectural the Hawkesbury Door features top-rolling hardware for smooth, trouble-free operation.
  • Tyred floor guides run effortlessly in channels neatly concealed beneath the door rails.
  • 19mm glazing pocket accepts up to 13.5mm single glazed.
  • Double glazing option accepts up to a 28mm IGU.
  • Colour coded glazing wedges ranging from 2mm to 7mm in one mm increments.
  • Panel heights up to 3000mm subject to project requirements and site conditions.
  • Weatherseal technology keeps wind, rain and cold air where it belongs.

Technical Specifications

Frame Dimensions
2 Track 124 x 45 mm
3 Track 186 x 45 mm
Maximum Product Performance
SLS (Pa) 1400
ULS (Pa) 2700
Water (Pa) 200
Maximum Recommended Sizes
Height 3000 mm
Sash Width 2500 mm
Weight 300 kg per panel
Acoustic Performance
Glass Type Rw (C; Ctr)
6.38mm Laminate Rw 29
6.38mm/ 12/ 6.5mm Rw32
Thermal Performance
Uw range SG 4.5 – 6.2
SHGC range SG 0.26 – 0.59
Uw range DG 3.2 – 4.0
SHGC range DG 0.25 – 0.52
Glazing Details
Single Glazed 6 – 13.5mm
Double Glazed 18 – 28mm
