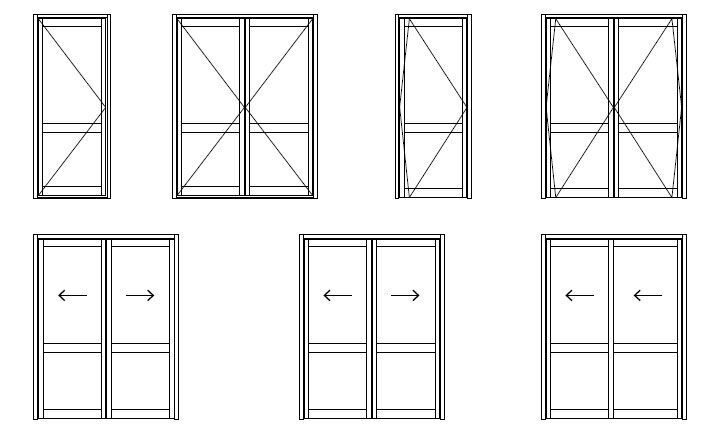

The Alpsec® Swan Evo™ 45mm Commercial Door is a versatile shopfront door that is easy to fabricate and install. Suitable for a wide range of applications, the Swan Evo™ 45mm Commercial Door can be used in hinged, pivoted or sliding configurations. The Swan Evo™ 70mm Commercial Door can be used in hinged configurations. The Swan Evo™ integrates seamlessly with the Alspec® commercial framing systems.

Featuring a new and improved clamping spigot set, for superior performance and easy fitment, integrated heal and toe block and captive glazing option, the Swan Evo™ provides the ideal solution where superior operation and performance is required. Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.

Key Features

  • Stronger sash through the use of custom designed clamping spigot set
  • 19mm glazing pocket accepts up to 13.5mm single glazed
  • Double glazing option accepts up to a 38mm IGU
  • Colour coded glazing wedges for ease of identification
  • Easily adapts to Alspec’s McArthur Evo and Hunter Evo framing systems
  • Range of thresholds such as disabled ramp
  • 45mm available in hinged pivoted of sliding options, 70mm available in hinged option
  • Panel heights up to 3050mm subject to project requirements and site conditions

Technical Specifications

Door Dimensions
Option 1 45 x 75mm
Option 2 45 x 80mm
Option 3 45 x 120mm
Option 4 45 x 125mm
Option 5 70 x 100mm
Maximum Recommended Sizes
Height 3050mm
Width 2400mm*
Weight 225kg*
Acoustic Performance
Glass Type Rw (C; Ctr)
6.38mm Laminate – McArthur Evo 101.6mm 32 dB
10.5mm Vlam Hush – McArthur Evo 101.6mm 35 dB
6.38mm Clear Laminate / 12mm / 6.5mm Vlam Hush – ecoFRAMEplus 101.6mm 37 dB
6.38mm Clear Laminate / 12mm / 6.38mm Clear Laminate – ecoFRAMEplus 101.6mm 38 dB
Thermal Performance
Uw range SG 4.2 – 6.0
SHGC range SG 0.30 – 0.69
Uw range DG 3.3 – 3.8
SHGC range DG 0.16 – 0.58
Glazing Details
Single Glazed 6 – 13.5mm
Double Glazed 18 – 38mm
