Awnings & Casements

Awnings & Casements

Alspec’s® range of Awning and Casement windows are ideal for suburban housing, multi-unit residential, hotels and commercial applications. The Awnings and Casements can integrate with a number of Alspec® Commercial Framing systems by using different awning adaptors.

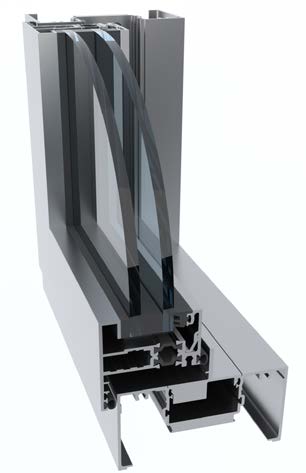

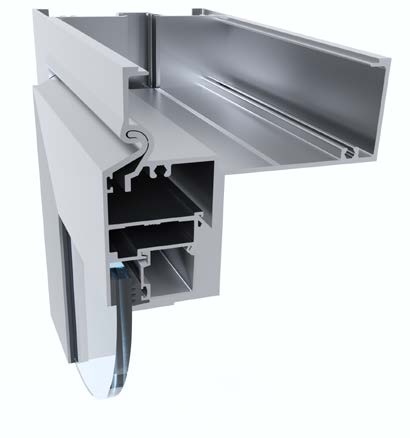

The 35mm and 50mm sashes offer the benefit of overlapping internal and external seals to achieve superior weather performance. The 443 30mm sash sits inset of the framing and can offer a flush appearance.

Various glazing options for single and double glazing are available. All Awnings and Casements can be used with a range of available stays and operated with Chainwinders or Cam handles, locking or non-locking. With the use of our Chainwinder adaptor insect and security screens can easily be added from the inside of the building.

Key Features

  • Wide range of applications
  • Integration with a number of Alspec Commercial Framing systems
  • Superior weather performance
  • Various glazing options including double glazing
  • Electric winder option

Technical Specifications

Frame Dimensions
Option 1 Sash width 30mm
Option 2 Sash width 35mm
Option 3 Sash width 50mm
Maximum Recommended Sizes 30mm 35mm 50mm
Height(mm) 1000 1500 1800
Width(mm) 1000 1200 1200
Weight 18kg 90kg 90kg
Sash SQMs 1.0 1.2 1.8
Maximum Product Performance 35mm 50mm
SLS (Pa) 2300 2200
ULS (Pa) 4500 5100
Water (Pa) 700 660
Thermal Performance 35mm 50mm
Uw range SG 5.9 – 6.9 5.8 – 7.2
SHGC range SG 0.26 – 0.53 0.29 – 0.51
Uw range DG 4.2 – 4.8 4.3 – 5.3
SHGC range DG 0.15 – 0.48 0.13 – 0.45
Glazing Details (both) 30mm 35mm 50mm
Single Glazed(mm) 6 4 – 12 4 – 16
Double Glazed(mm) 18 18 – 24 24 – 30
Acoustic Performance 35mm 50mm
Glass Type Rw (C; Ctr) Rw (C; Ctr)
6.38mm Laminate 33 (-1,-2) dB 33 (-1,-2) dB
12.76mm Laminate N/A 38 (-1, -3) dB
6.76mm Lam / 13.5 Gap / 6.76mm Lam N/A 41 (-2, -6) dB
